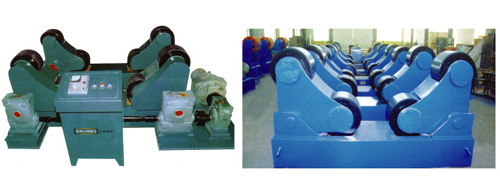

ZT Series automatic debugging wheel frame
ZT Series automatic debugging wheel frame
　　
FEATURE & FUNCTION
This equipment is a set combined with active turning-roll and passive turning-roll and each one has four rolls.The roll consists of iron stalk and rubber and can be used longley without vibration.
The active turning-roll is droved by two turbine deceler-ating box.This box get the linear velocity as 0.1-0.6 meter per second by adjustable motor andcontroller.ZT5-200T turning-roll is suitable for the scope of work piece from the min diameter 350mm to max diameter 6000mm which can be ordered by customs.

　　TECHNICAL PARAMETER
Loading(T) Diameter and width of the wheel(mm) Height of the center dictance of length total length width Welding speed(m/min) power of moter(kw) Size limit of product (mm)
5 250 90 300 1000 1650 500 100-1000 1.5 500-1800
10 250 150 320 1200 1900 500 100-1000 2.2 600-2200
15 250 150 350 1300 2000 650 100-1000 2.2 600-2500
20 300 200 400 1400 2180 1000 100-1000 3 800-3000
30 370 250 420 1700 2700 700 100-1000 4 1000-4000
50 400 290 490 2000 3300 900 100-1000 5.5 1200-5000
60 400 300 490 2000 3300 1000 100-1000 5.5 1600-5000
80 450 300 500 2200 3400 1200 100-1000 7.5 1800-5000
100 400lron wheel 300 520 2200 3500 1200 100-1000 11 2000-6000
120 400lron wheel 300 520 2200 3500 1200 100-1000 11 2000-6000
150 400lron wheel 300 540 2400 3500 1200 100-1000 15 2000-6000
200 400lron wheel 360 600 2500 3500 1200 100-1000 18.5 2000-6000
