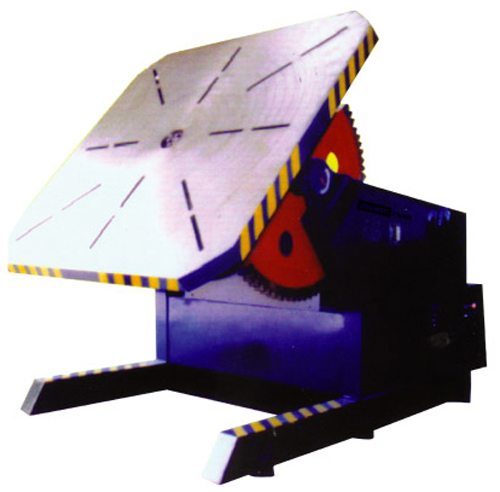

BW series all-position welding positioner
BW series all-position welding positioner

FEATURE & FUNCTION
BW positioner is an equipment to turn and tilt the work-piece to the horizontal and ship-shape position to weld,it can realize the auto-welding with XZH welding operator,it also can be used in cutting procedure,whetting procedure and examiningone and so on,At the same time,we can design and manufacture various type of positioners accord-ing to the technological requirements by the customers.

  TECHNICAL PARAMETER
Model BW1 BW2 BW6 BW10
Rated weight bearing(kg) 1000 3000 6000 10000
Size of working table (mm) 800 1400 1500 1700
900 1500 1600 1900
Overturning velocity of workingtable(rpm) 0.07-0.7 0.05-0.5 0.05-0.5 0.03-0.3
turning angle of workingtable(°) 0.135
Speed of the workingtable(sec/135) 30 60 75 90
The distance of workingtable(mm) 850 1200 1300 1500
Operating method of the positioner Controlled by hend or feel
Tobal size (W×L×H) 1.2×0.85×0.85 1.8×1.56×1.2 2×1.78×1.34 2.5×2.02×1.46
Tobal weight(Kg) 620 2500 3580 5640
