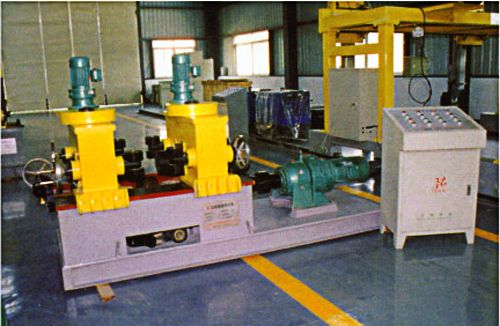

JZ series of H-shaped steel hydraulic straightening machine
JZ series of H-shaped steel hydraulic straightening machine

FEATURE & FUNCTION
When H-beam is in the process of welding,the flange plate must be bent and transfromed.This machine is a special equipment applying to straighten the flange plates,it can be operated simply and high effectually.It is widely used for metallurgy machine,steel structure and bridge architecture etc.

  TECHNICAL PARAMETER
Model JZ-30 JZ-40 H-beam hydraulic straightening machine
Width of the flange plante(mm) 200-800 200-800 200-900
Thickness of the plante(mm) ≤30 ≤40 ≤60
Min height of web (mm) 180 200 350
Material A3 16Mn A3 16Mn A3 16Mn
Straightening speed (m/min) 7.8 9 5.4
Power of the motor 7.5 11 20
