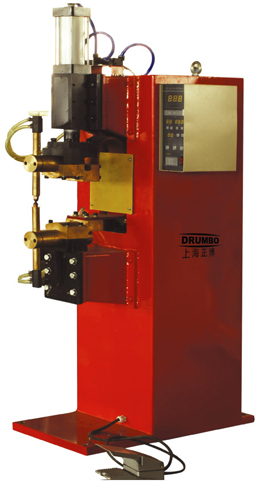

DTN series pneumatic spot projection welding
DTN series pneumatic spot projection welding
　　
FEATURE & FUNCTION
DTN-25、35、50、75、100、200Pneumatic point welder raised welder are widely used in autonobile ,aviation,architecture,mechanism and metal ware and wirintg switch fields,they are also used in jointing low carbon steel,stainless steel,and colored metal patch and thread with high quality,hard or braze welding
Adopt for digitaling gegrated circuit componcnt with international famous brand,computer control box with programe,which be sure point welding is reliable and stable quality;single pointand continuous point welder function.
　
　TECHNICAL PARAMETER

Model\

item

 Rated power(KVA) Clcmentary pressureV Rated-load sustaining range% The length of electrode arm(MM) the distance electrode arm(MM) the length of the electrode upper electrode work procedure(MM)
DTN-25 25 380 50 430 220 25-100
DTN-35 35 380 50 430 220 25-100
DTN-50 50 380 50 450 220 25-120
DTN-75 75 380 50 450 300 25-120
DTN-100 100 380 50 450 300 25-120
DTN-200 200 380 50 450 300 25-120
　TECHNICAL PARAMETER

Model

\item

 Raised welder platform(MM) Preessure of cordense air(MPa)

Max prssure

(N)

Cooling water

flux

(L/MIN)

welding

thickness

(Astain stecl)MM

Ext.Dimensions

(W×L×H)MM

 the weight of welding maching(KG)
DTN-25 110×150 2-6 5000 6 2+2 1050×390×1560 250
DTN-35 110×150 2-6 5000 6 2.5+2.5 1050×390×1560 260
DTN-50 110×150 2-6 8000 8 3+3 1050×390×1560 280
DTN-75 110×150 2-6 8000 8 4+4 1100×460×1700 350
DTN-100 110×150 2-6 8000 8 5+5 1100×460×1700 380
DTN-200 110×150 2-6 8000 8 6+6 1100×460×1700 420
