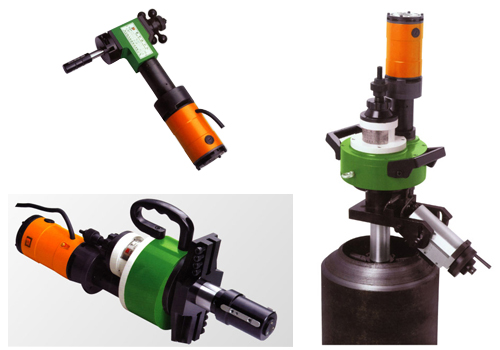

Electric Pipe Beveling Machine
Electric Pipe Beveling Machine

FEATURE & FUNCTION
Portable type.Driven by imported motor located by inner expansion.device Automatically centering.Applicable for types V&U beveling process for the different materials.It is universally applied to the fields of oil,chemistry,power construction,boiler-manufacturing etc.

  TECHNICAL PARAMETER
Model ISY-80 ISY-150 ISY-250 ISY-350-Ⅰ ISY-351-Ⅱ ISY-630-Ⅰ ISY-630-Ⅱ
Power(V) 220 220 220 220 220 220 220
Motor power(W) 950 1500 1800 2000 2000 2200 2000
Proceedable pipe inside diameter(mm) 20-80 65-159 80-240 150-330 150-330 280-600 280-600
Once cutting wall max thickness 15 20 20 20 70 20 70
Axle feed stroked(mm) 35 50 55 55 55 55 55
Noise(sound power grade)dB(A) ≤103 ≤92 ≤100 ≤100 ≤100 ≤100 ≤100
Weight(kg) 7 12.5 38 42 45 55 55
