Introduction：

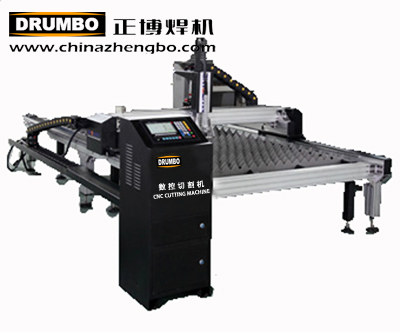

Developed and Launched by SHANGHAI ZHAOZHAN AUTOMATION EQUIPMENT CO.LTD., Steel Table Style CNC Cutting Machine enjoys features like economical, environmental, efficient, low-cost and space-saving which further utilize the performance of the equipment.
Smoke processor & exhaust system:
The tailored smoke processor and exhaust system is composed of two parts:
1) A smoke processor pipe which can move simultaneously with the CNC torches during the plasma cutting process.
2) An exhaust system that connected with that pipe intends for purify the exhaust that collected. Such elaborate design enjoys the efficient
cleaning and low-cost maintenance which can yield a satisfactory cleaning result.
Product features:
1) The complete set of machine tool is anti-deformed, durable, economical and decent after the disposal of stress relieving.
2) The good quality smoke processor (Optional) attached can purify air and reduce gas exhausts which guarantees the hygiene of the working
place and does good to the human health.
3) Cutting Range: 2500*1300mm.
4) The tailored cutting table boasts sturdy and durable features. And the support board of it is easy to move and can be replaced
conveniently.
2. Product features:
1) The tailored track with dual drive acquires zero-noise, high-intensity, high-speed and high-precision features.
2) Human-computer interface design makes the machine easy to learn and operate, and have complete functions.
3) The smoke processor and exhaust system are easy to handle and yield prominent results.
4) Grid design for collection working piece is easy to handle and can prevent it and the wastes into exhaust system.
5) The same function of CNC table cutting and can cut carbon steel, stainless steel and non-ferrous metal plate.
6) With the function of cutting metal plates into any shapes.
7) With two cutting modes: Flame Cutting & Plasma Cutting.
8) Chinese, English, French, and Portuguese are ready to use.
9) Can automatically memorize and restore when power is off.
10) Can choose Plasma THC ( torch height control) device.
11) Plasma high frequency proofed which guarantees the safety of the plasma cutting.
|
Name
|
ENVIRONMENTAL STEEL STRUCTURE TABLE STYLE CNC FLAME PLASMA CUTTING MACHINE
|
|
Model
|
CNCUT-1325S-ST
|
CNCUT-1530S-ST
|
CNCUT-2030S-ST
|
CNCUT-1325S-SE
|
CNCUT-1530S-SE
|
CNCUT-2030S-SE
|
|
Input Power
|
Single Phase AC 220V （3 phase AC 380V environmental equipment）
|
|
Approximately 1200W + (2200W smoke filter)
|
Approximately 1500W + (2200W environmental equipment)
|
|
Cutting Modes
|
Plasma Cutting (Working with plasma generator) / Flame Cutting / Plasma Cutting + Flame Cutting
|
|
Transmission Style
|
Rack And Gear
|
|
Motor Style
|
Step Motors Dual Drive
|
Servo Motors Dual Drive
|
|
Tracks space between
|
1450mm
|
1650mm
|
2150mm
|
1450mm
|
1650mm
|
2150mm
|
|
Track length
|
3200mm
|
3700mm
|
3700mm
|
3200mm
|
3700mm
|
3700mm
|
|
Track length
(effective cutting
length Y axis)
can be customized
for extending
cutting length
|
Track length (effective cutting length Y axis) can be customized for extending cutting length
|
|
Effective Cutting
Range for each
torch X*Y
|
1300*2500mm
|
1500*3000mm
|
2000*3000mm
|
1300*2500mm
|
1500*3000mm
|
2000*3000mm
|
|
Tool Quantity
|
One Tool
|
One Tool
|
One Tool
|
One Tool
|
One Tool
|
One Tool
|
|
Torch Height
Control Style
|
Flame THC : Optional / Plasma THC: Optional
|
|
One Tool just can
support one Flame
THC or one Plasma THC
|
One Tool just can support one Flame THC or one Plasma THC
|
|
Max.Cutting
Torch Quantity
|
2 pieces
|
2 pieces
|
2 pieces
|
2 pieces
|
2 pieces
|
2 pieces
|
|
Optional Torch
Style
(Plasma:P Flame:F)
|
P / F / P+F
|
P / F / P+F
|
P / F / P+F
|
P / F / P+F
|
P / F / P+F
|
P / F / P+F
|
|
Cutting Speed
|
0-4000mm/min
|
0-10000mm/min
|
|
Torch Lifting
Distance (Z)
|
≤120mm
|
|
Working Precision
|
± 0.2 mm / meter
|
|
Flame (Gas)
Cutting Thickness
|
Piercing Capacity: 5 - 60 mm Edge Start: 5 - 120mm
|
|
Plasma Cutting
Thickness
|
Depends on the cutting capacity of the Plasma Generator
|
|
Flame auto igniter
|
Including Flame device
|
|
Gas Pressure
|
Acetylene Gas or Propane Gas Max 0.1Mpa
|
|
Oxygen Pressure
|
Oxygen Gas Max 0.8Mpa
|
|
Cutting Table
|
integrated designed table will be supplied.
Grid design for collection work piece.
|
|
Environmental
protection equipment
|
The air draft device follow the cutting torch, making air draft 93% efficiency. Dust
filter container will deposit all dust, and no outgoing any polluted air. It is easy to
operate, and low cost, and easy to be cleaned. It makes clean cutting.
|
|
