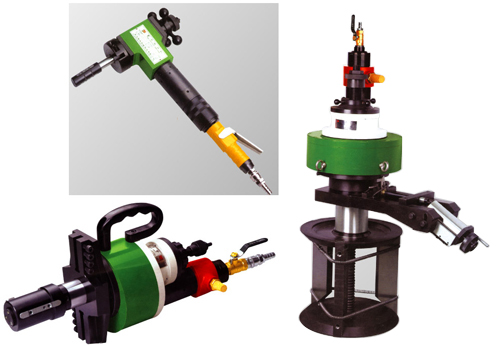

| 氣動管道坡口機 |
 |
|
|
主要特點及功能
便攜式,采用壓縮空氣為動力,內脹胎定位,自定管子中心,可對不同材質的圓管端面作V、U型坡口,及倒棱、倒角、平面等加工,俗稱“便攜式機床”。 |
|
|
| 技術參數 |
| 規格型號 |
加工范圍 |
切割坡口壁厚 |
刀盤速度 |
重量 |
| GPJ-28 |
Φ13-30mm |
≤15mm |
58rpm |
5kg |
| GPJ-80 |
Φ28-76mm |
≤15mm |
55rpm |
7kg |
| GPJ-150 |
Φ65-159mm |
≤15mm |
34rpm |
16kg |
| GPJ-350 |
Φ150-330mm |
≤15mm |
16rpm |
28kg |
| GPJ-250-Ⅱ |
Φ80-273mm |
≤75mm |
16rpm |
38kg |
| GPJ-351-Ⅱ |
Φ150-351mm |
≤75mm |
14rpm |
45kg |
| GPJ-630-Ⅱ |
Φ300-630mm |
≤75mm |
10rpm |
55kg |
| GPJ-850-Ⅱ |
Φ600-850mm |
≤75mm |
8rpm |
76kg |
| GPJ-1050-Ⅱ |
Φ820-1050mm |
≤75mm |
7rpm |
105kg |
| GPJ-1300-Ⅱ |
Φ1030-1300mm |
≤75mm |
5rpm |
116kg |
| GPJ-1500-Ⅱ |
Φ1270-1500mm |
≤75mm |
4rpm |
145kg | | |
|
|
